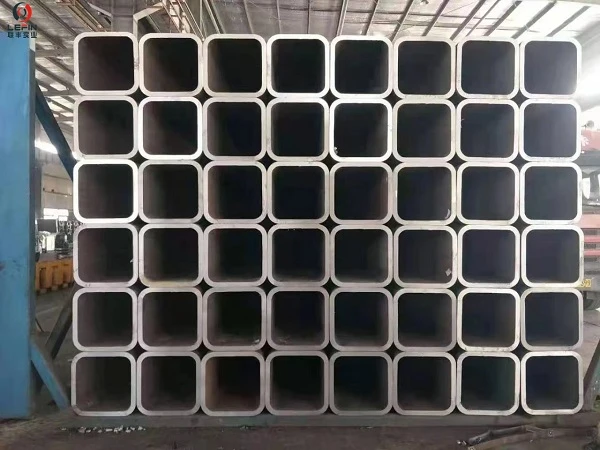

Hollow Sections EN10210 Standard Tubes
Lub cev muaj zog thiab tshuaj muaj pes tsawg leeg ntawm EN10210
| Qeb | QS | TS | Elongation (%) | Kev cuam tshuam | |||
| (MPa) | (MPa) | ||||||
| S Tsawg dua los yog sib npaug rau 16 | 16＜S Tsawg dua lossis sib npaug rau 40 | S＜3 | 3 Tsawg dua lossis sib npaug rau S Tsawg dua lossis sib npaug rau 65 | degree | min | ||
| S235 JRH | 235 | 225 | 360~510 | 340~470 | 26 | 20 | 27 |
| S275 YOG | 275 | 265 | 430~580 | 410~560 | 22 | 0 | 27 |
| S275J2H | 275 | 265 | 430~580 | 410~560 | 22 | -20 | 27 |
| S355 YOG | 355 | 345 | 510~680 | 490~630 | 22 | 0 | 27 |
| S355J2H | 355 | 345 | 510~680 | 490~630 | 22 | -20 | 27 |
| Tshuaj muaj pes tsawg leeg | ||||||
| Qeb | C | Si | Mn | P | S | |
tuab Tsawg dua los yog sib npaug li 40mm | tuab >40 mm | |||||
| S235 JRH | 0.17 | 0.2 | - | 1.4 | 0.045 | 0.045 |
| S275 YOG | 0.2 | 0.22 | - | 1.5 | 0.04 | 0.04 |
| S275J2H | 0.2 | 0.22 | - | 1.5 | 0.035 | 0.035 |
| S355J0H | 0.22 | 0.22 | 0.55 | 1.6 | 0.04 | 0.04 |
| S355J2H | 0.22 | 0.22 | 0.55 | 1.6 | 0.035 | 0.035 |
