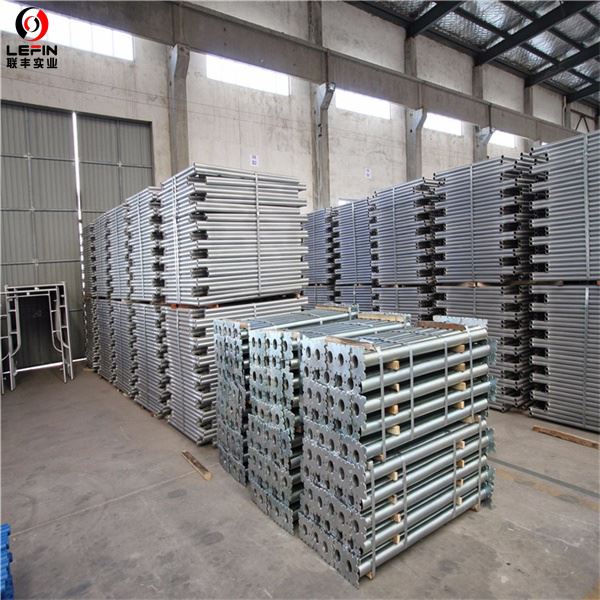

Galvanized Steel Props
—————————————————————————————————
Galvanized Steel Propsyog ib qho yooj yim rau erect thiab muaj peev xwm ua tau los ntawm ib tug tib neeg, ua kom ntseeg tau thiab kev lag luam formwork thiab scaffolding daim ntaub ntawv.
Galvanized Steel Propsyog ua los ntawm OD 48.3mm puab yeeb nkab & OD 60.3mm txheej yeeb nkab, nrog thickness 3.5-4.0mm, 8mm puag/top phaj, dia.16mm G tus pin los yog dab tshos Pin, thiab cam khwb cia steel jack txiv ntseej, muaj nyob rau hauv ntau qhov sib txawv ntawm qhov ntau ntawm 1090mm txog 4950mm nrog axial compression ua haujlwm load txwv xws li 7kN txog 42.5kN.
Galvanized Steel Props Nyhav
—————————————————————————————————
1.Galvanized Steel Props Steel Prop Shoring Prop (Qhib xov), 4.0mm thickness
| Code | Kev hloov kho (Metric) | Kev hloov kho (Imperial) | Specification | Qhov hnyav (kg) | Qhov hnyav (lbs) |
| 0.DO4 | 1090-1880 hli | 3'7"--6'2" | Txheej yeeb nkab OD60x4mm, puab yeeb nkab OD48x4mm, kawg phaj 150x150x8mm, Qhib xov. | 15.52 | 34.22 |
| 1.DO 4 | 1620-2620 hli | 5'4"--8'7" | 19.04 | 41.98 | |
| 2.DO 4 | 1950-3220 hli | 6'5"--10'7" | 21.96 | 48.42 | |
| 3.DO 4 | 2590-3860 hli | 8'6"--12'8" | 24.69 | 54.44 | |
| 4.DO 4 | 3200-4950 hli | 10'6"--16'3" | 30.04 | 66.24 |
2.Galvanized Steel Props Steel Prop Shoring Prop (Qhib xov), 3.5mm thickness
| Code | Kev hloov kho (Metric) | Kev hloov kho (Imperial) | Specification | Qhov hnyav (kg) | Qhov hnyav (lbs) |
| #0.DO3.5 | 1090-1880 hli | 3'7"--6'2" | Txheej yeeb nkab OD60x3.5mm, puab yeeb nkab OD48x3.5mm, kawg phaj 150x150x8mm, Qhib xov. | 14.35 | 31.64 |
| #1.DO3.5 | 1620-2620 hli | 5'4"--8'7" | 17.46 | 38.50 | |
| #2.DO3.5 | 1950-3220 hli | 6'5"--10'7" | 20.04 | 44.20 | |
| #3.DO3.5 | 2590-3860 hli | 8'6"--12'8" | 22.45 | 49.51 | |
| #4.DO3.5 | 3200-4950 hli | 10'6"--16'3" | 27.19 | 59.94 |
* Hlau Qib: S235JR lossis S355JR
* Tiav: kub dip galvanized, hluav taws xob galvanized
Thov nrog kuv tham kom ntxaws cov khoom nrog kom muaj nuj nqis thiab loj,
Hu rau kuv, Elva (mob/whatsapp/wechat) 0086-15122519420
or send me email: elvazhao@lefinsteel.com
Galvanized Steel PropsLoaded los ntawm 20GP lossis 40HQ 1500-2300pcs rau ib lub thawv
—————————————————————————————————
Galvanized Steel PropsHom Lub Teeb
—————————————————————————————————
Galvanized Steel Props HS code 730840
—————————————————————————————————
Galvanized Steel Props Bolivia Brazil Sudan Niger Morocco Egypt Qaib ntxhw Congo Mozambique
—————————————————————————————————
Galvanized Steel Props Malaysia Thailand Indonesia Philippines Australia New Zealand
—————————————————————————————————
Cim npe nrov: galvanized steel props, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, nqe
