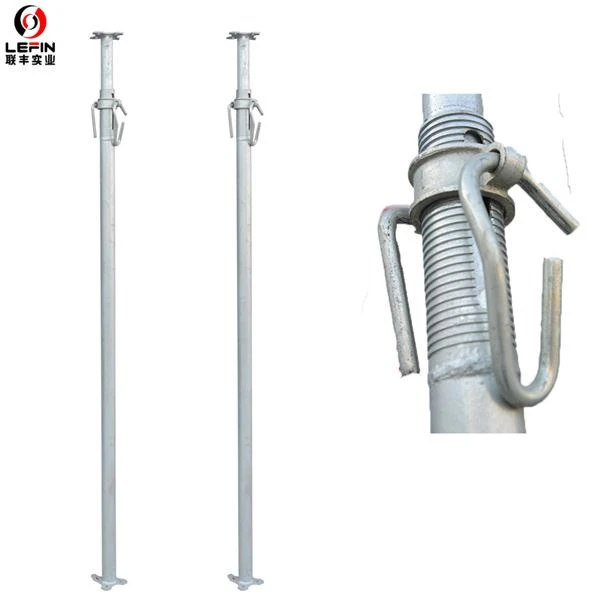

TshiabAcrow Prop
—————————————————————————————————
| STEEL PIPE SUPPORT SPECIFICATION | ||||||
| Qhov siab | Tso cai Load | |||||
| Qauv No | Lub raj sab nraud (mm) | Lub raj sab hauv (mm) | Min (mm) | Max (mm) | Kaw (kg) | Txuas ntxiv (kg) |
| V-1 | 1,500 | 1,800 | 1,800 | 3,300 | 2,200 | 1,700 |
| V-2 | 1,500 | 2,000 | 2,000 | 3,500 | 2,000 | 1,500 |
| V-3 | 1,500 | 2,400 | 2,400 | 3,900 | 1,900 | 1,300 |
| V-4 | 1,500 | 2,700 | 2,700 | 4,200 | 1,800 | 1,200 |
1. Cov yeeb nkab sab nraud: Tshiab STK - 500 carbon steel yeeb nkab ua cov khoom siv rau kev tsim qauv. Qhov Loj: Φ60.5 x 2.3mm
2. Cov yeeb nkab sab hauv: Tshiab STK - 500 carboncev steelraws li cov khoom siv rau kev tsim qauv. Qhov Loj: Φ48.6 x 2.3mm
3. Plate Phaj: STK - 410 steel phaj nws thickness 6 hli thiab txheej txheej los ntawm kev ruaj khov vuam.
4. Screw: Tshiab JIS G 3452 qib threaded yeeb nkab ntawm Ø 60.5 x 3.2mm thickness. Nws yog welded ntawm lub raj sab nrauv thiab muaj ib lub qhov qhov uas tus pin tuaj yeem hla nws.
5. Adjustable dab tshos & Kov: Tshiab STK - 41 carbon steel hlab thiab ib tug bracket rau kev sib koom tes ntawm tus kov thiab dab tshos.
